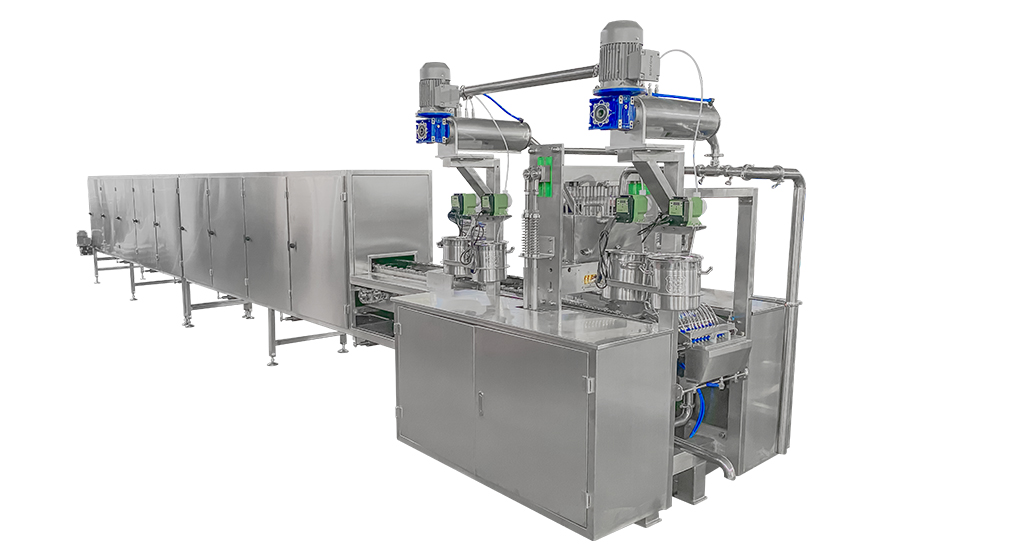

Gummy Candy Depositing Production Line, GD150Q
The gummy candy depositing production line is designed to manufacture gummy candy in a variety of shapes.
150 kg/hour
It is PLC controlled and features a maximum capacity of 150 kg/hour.High Food Safety
The candy production line is designed to meet food safety and GMP standards.High Production Flexibility
With the use of different configurations, this production line produces single color gummy candy, two-color gummy candy, striped gummy candy and other gummy candy types.Save Space and Labor Costs
The candy depositing production line features a compact structure to save space, and the highly automated performance saves labor without sacrificing product quality.
-
Jacketed cooking kettle
The jacketed cooking kettle is used to dissolve and cook ingredients such as glucose, granulated sugar, and water. It uses electric heating and features a large heating area, heating uniformity, and easy to control the temperature. This equipment improves product quality and shortens the processing time.
-

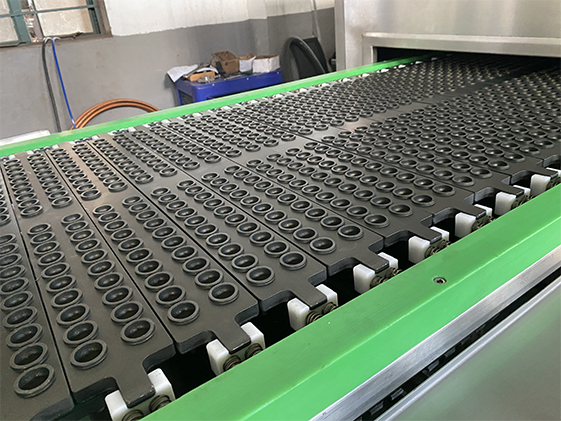

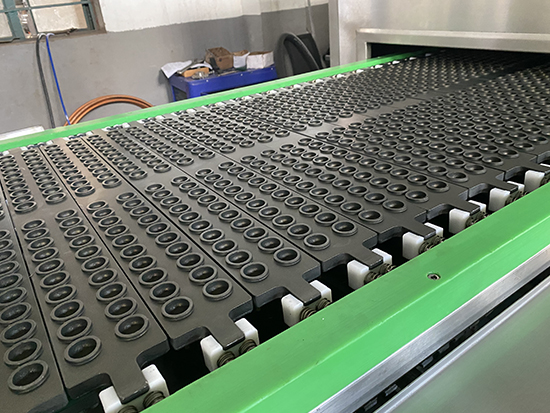

Mold
The production line manufactures candies in a variety of shapes using different molds. We will design molds according to your needs.
-

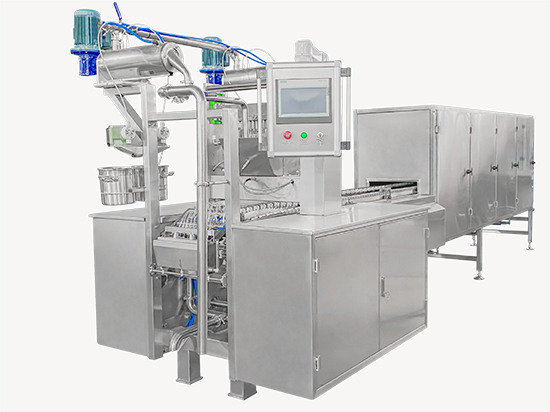

Depositing machine
The depositing machine uses PLC to control the parameters such as temperature and depositing speed. These parameters are easy to read and set on the touch screen, while the syrup flow is precisely controlled via a frequency control system to ensure a stable sugar paste quality.
- The flavors and color mixing system uses a dosing pump and dynamic mixer manufactured by LMI MILTON (American brand) to ensure the mixed syrup is uniform in color. The food coloring and flavoring amount is adjustable according to your needs.
- The improved depositing head is more reliable and accurate.
- The punch is easy to operate and replace. The punch stroke (sugar weight) is adjustable online.
- The hopper uses electric heating with an easily adjustable temperature.
- Its improved cooling tunnel features the same height, longer length and more accurate temperature control over previous models. The full refrigeration unit is integrated into the refrigerated cooler.
- The unique demolding device features a tank chain structure and is equipped with a rotating brush to ensure a full candy demolding process.
- Its PVC cooling conveyor belt is manufactured using the latest technology. It features a smooth appearance and is easy to clean and maintain, ensuring a long service life.
- The production line can be customized to fit your site conditions.

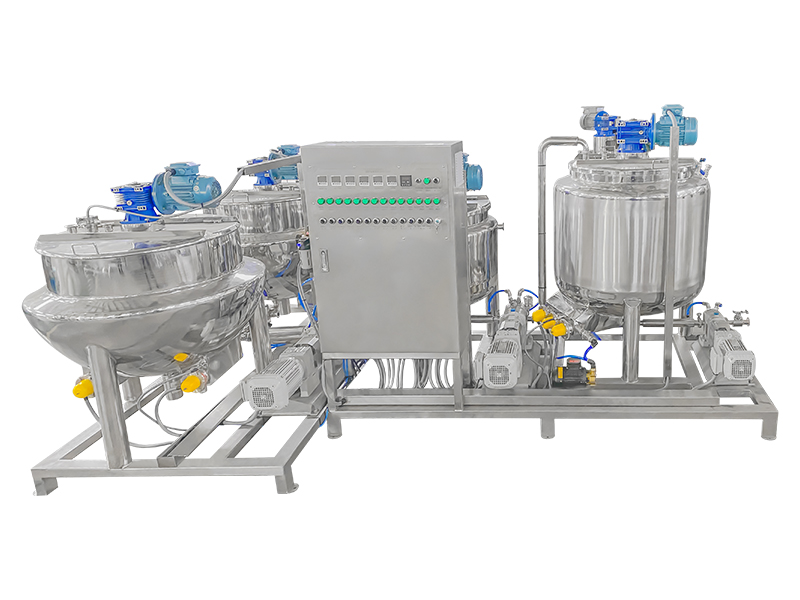

Dissolving and mixing unit with automatic weighing system
It will automatically mix and dissolve glucose, granulated sugar, and other ingredients. The amount of the ingredients is precisely controlled via PLC.
Jelly cooking system
The jelly cooking system is made of food-grade stainless steel and will not contaminate the syrup. It is designed to produce jelly using modified starch materials, including pectin, gelatin, agar, carrageenan, and more. This system is equipped with a rapid preheating device and vacuum chamber so as to better control the syrup concentration and improve its quality.
Oil spray machine
This machine is used to spray oil on the gummy candy before or after it has been dried for a glossier surface. It is applied to different gummy candy types.
Sugar coating pan
The sugar coating pan is used to coat a sugar icing on gummy candy before or after it has been dried. It is used for different gummy candy varieties.
Self-stacking tray and cart
After the gummy candies are formed, they will be stacked in self-stacking trays that are stacked layer by layer, then sent via a cart to the drying room.
-
Q: Are you a factory?
A: We are factory, and have obtained ISO9001 certificate with the certificate number of 10135145Q. In addition, each of our products has CE certificate.
-
Q: What after-sales service do you provide?
A: (1) Video guide (2) Online guide (3) On-site installation and maintenance.
-
Q: What are the machines made of?
A: All materials are made of 304 stainless steel.
-
Q: How long is the lead time?
A: The delivery time is generally 10 days to 35 days depending on the machines.
-
Q: Do you provide factory test service?
A: Before leaving the factory, each machine will be tested and shipped only after the customer is satisfied.
-
Gummy Production Line by US Customer
Time: August, 2018
Customer Location: American
Gummy vitamins have been increasing in popularity in recent years, particularly in America and Canada. Addressing the needs of producers of health products, we have been supplying production lines specially designed to manufacture gummy and vitamins.
-
Gummy Candy Depositing Production Line, GD40Q
GD40Q Automatic gummy production system is very compact, with specifications of L (10m) * W (2m), meaning that it is quite suitable for small- and medium-size companies.
-
Gummy Candy Depositing Production Line, GD80Q
GD80Q Automatic gummy production system is very compact, with specifications of L (13m) * W (2m), meaning that it is quite suitable for small- and medium-size companies.
-
Gummy Candy Depositing Production Line, GD300Q
GD300Q Automatic gummy production system is very compact, with specifications of L (14m) * W (2m), meaning that it is quite suitable for small- and medium-size companies.
-
Gummy Candy Depositing Production Line, GD600Q
GD600Q Automatic gummy production system is large and sophisticated, which is especially suitable for large companies. It is equipped with automatic weighing and automatic feeding devices, which boost productivity and reduces labor cost.
-
Jelly Candy Starch Mogul Line
The jelly candy starch mogul line is designed for producing starch jelly candy. It is PLC controlled and features a maximum capacity of 400 to 800kg/hour.
-
