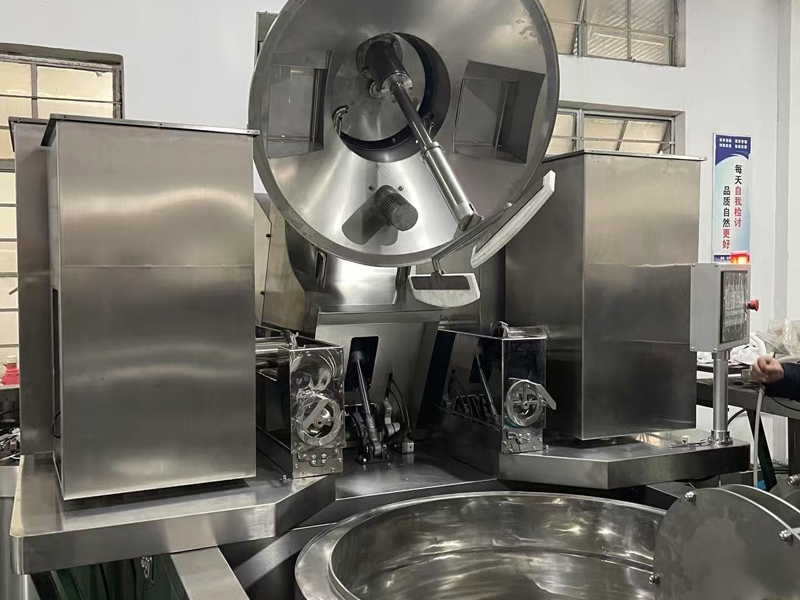

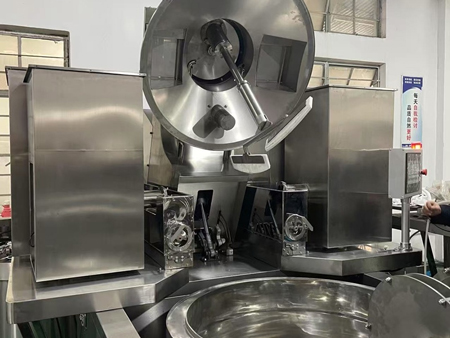

This fully automatic industrial popcorn production line consists of automatic popcorn machines, conveyors, and a rotary cooling and screening drum. The unmanned production line allows one operator to control multiple popcorn machines simultaneously. The entire process is fully automated, with all operations managed by a PLC control system, including popping time, temperature, and stirring speed, enabling automatic feeding, popping, stirring, and discharge.
The production line features high output, high finished product yield, a durable kettle lining, uniform heating, and non-stick stirring performance, making it an ideal solution for industrial-scale popcorn manufacturing.
| Model | 1 IN 1 | 2 IN 1 | 3 IN 1 | 4 IN 1 |
| Max. capacity | 120kg/h | 240kg/h | 360kg/h | 480kg/h |
| Popcorn shape | Mushroom & butterfly (depending on corn type) | |||
| Output | 20kg/batch/pot | |||
| Production speed | 5-6 mins per batch | |||
| Power | 40kW | 88kW | 168kW | 248kW |

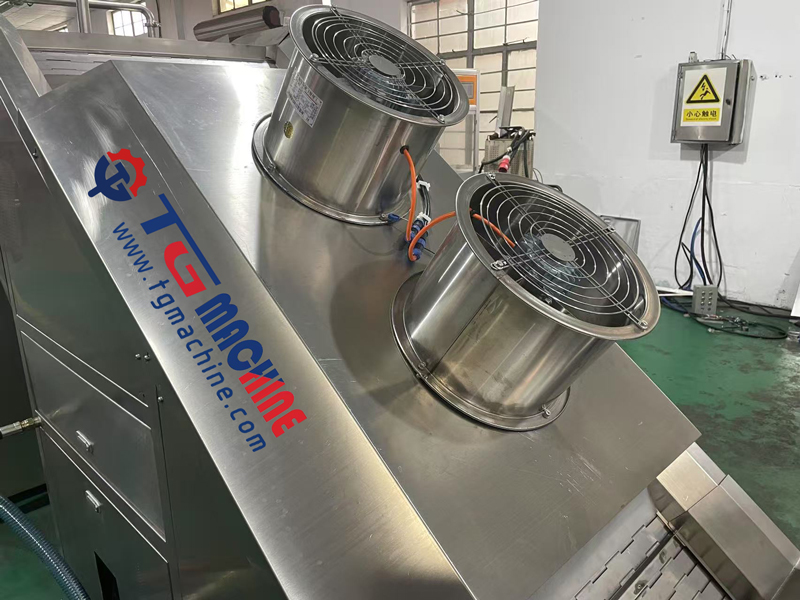

The conveyor transports popcorn to the rotary screening cooler and serves as the primary cooling stage.

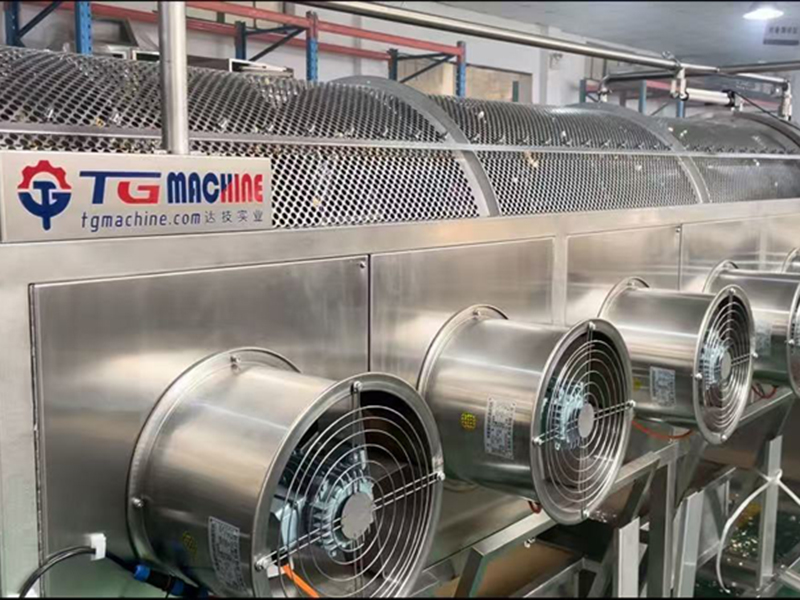

The rotary screening cooler drum is used to cool and screen the popcorn.
A: We are factory, and have obtained ISO9001 certificate with the certificate number of 10135145Q. In addition, each of our products has CE certificate.
A: (1) Video guide (2) Online guide (3) On-site installation and maintenance.
A: All materials are made of 304 stainless steel.
A: The delivery time is generally 10 days to 35 days depending on the machines.
A: Before leaving the factory, each machine will be tested and shipped only after the customer is satisfied.
