Due to its deliciousness and fun to enjoy, popping boba is rapidly gaining popularity all over the world. The production of popping boba in the local area saves costs and time so has become the choice of many food manufacturers.
Here at TG Machine, you can find the right equipment to produce popping boba. Our SMP200 popping boba production line is a fully automatic machine that features simple operation, and integrates all the processes of popping boba making.
Colloid mill is used to finely grind various semi-fluid materials, so that the materials can be broken and dissolved quickly and evenly. In the popping boba production line, it helps sodium alginate dissolving in water and increases its dissolution rate. Different output and fineness can be achieved by adjusting the gap between the fixed and rotating teeth of the colloid mill.
The cooking system is mainly used to cook fruit juice and surface coagulation liquid. It uses scraping-edge stirrer to avoid dead ends. Both steam heating and electric heating are available.
Working temperature: 0℃~150℃
Electric heating power: 24kw
Motor power: 1.5kw
Capacity: 400L
The cooling tank is mainly used to lower the temperature and to temporarily storage the liquid raw materials after cooking.
Motor power: 1.5kW
Capacity: 500L
Mainly used for conveying various liquid raw materials. The pump body is made of 304 stainless steel, which can meet the requirements of food production.
Flow rate: 3.3 m3/h, 55l/min.
Pressure: 0.32MPa
Speed: 1420r/min
Motor power: 1.1kW.
The forming system is composed of depositing system, material tray conveying system, sodium alginate circulation system, popping boba filtration system and cleaning system, etc.
Technical parameters
Total power: 8kw
Capacity: 200~300kg/h
Size : 5400x2200x2250mm
Weight: 2000kg
Working environment: >25℃
Depositing speed : 15~25times/min
Popping boba size: Dia8-15mm (popping boba with a minimum diameter of 5mm and a maximum diameter of 25mm can be customized)
Forming unit includes controller, depositor, liquid (sodium alginate liquid) cycle system, product filter system, washing system, buffer system and filtration system.
Note: The controller box can be independent or fixed to the machine
A: We are factory, and have obtained ISO9001 certificate with the certificate number of 10135145Q. In addition, each of our products has CE certificate.
A: (1) Video guide (2) Online guide (3) On-site installation and maintenance.
A: All materials are made of 304 stainless steel.
A: The delivery time is generally 10 days to 35 days depending on the machines.
A: Before leaving the factory, each machine will be tested and shipped only after the customer is satisfied.

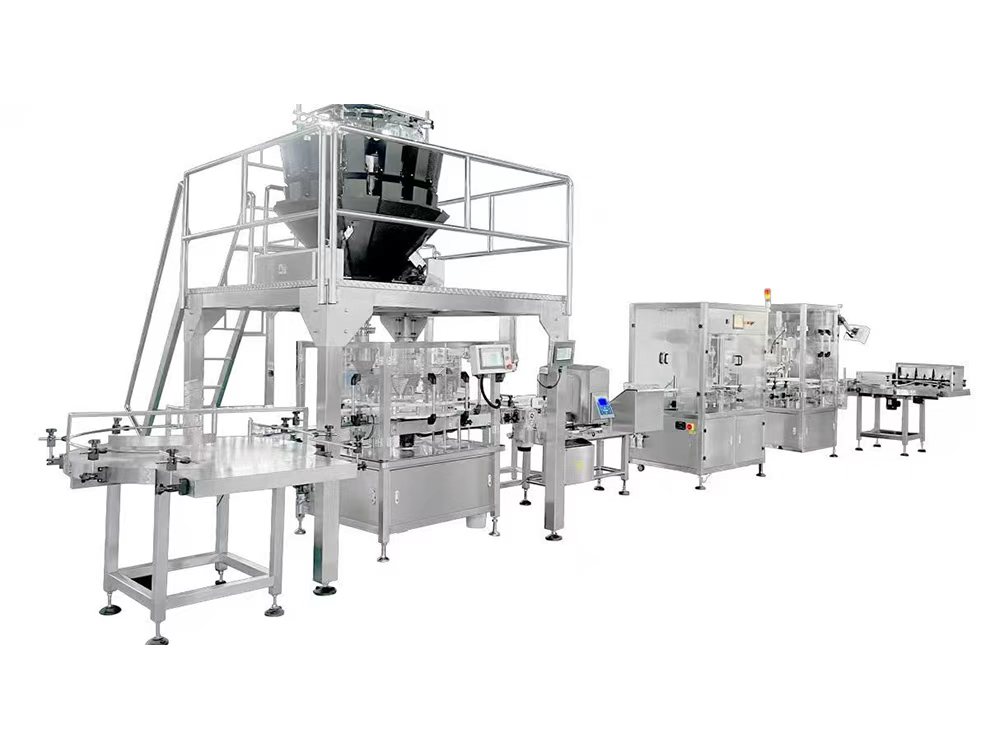

The automatic popping boba packaging line is designed to enhance production efficiency and product consistency. The popping boba filling system complies with international food safety standards and streamlines the complete packaging process from material handling to finished product output.
