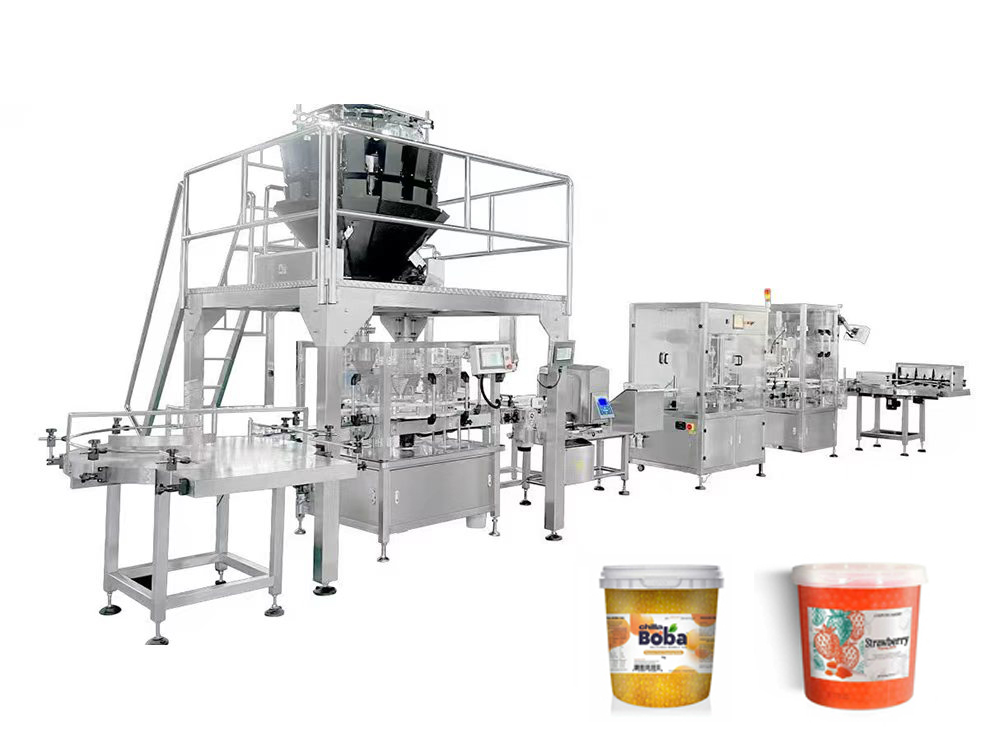

Automatic Popping Boba Packaging Line

The automatic popping boba packaging line is designed to enhance production efficiency and product consistency. The popping boba filling system complies with international food safety standards and streamlines the complete packaging process from material handling to finished product output.

Inquiry

Production Capacity: 8–25 bottles/min (adjustable); up to 1500 kg/h (industrial model)
Filling Weight: 1-3 kg per bottle (customizable)
Total Installed Power: ±12.5 kW
Rated Voltage: 220 V / 50 Hz (optional 380 V, 3-phase)
Total Line Length: ±11 m
Footprint (incl. operation space): ±80 m²
Total Line Weight: ±2.3 T

• Bottle Feeding and Material Handling: Bottle unscrambling system supports up to 60 bottles/min, combined with a 7,200 L/h Z-type elevator for smooth and stable material conveying.
• 14-Head Multihead Weigher: Provides high-precision weighing with an accuracy of ±1% and a speed of 10–30 bottles/min. All key components are made of SUS304 stainless steel, with Teflon sealing components for improved hygiene and sealing performance.
• Dual Filling System: Combines solid filling (popping boba) and liquid filling (syrup), with a liquid filling capacity of 500–1500 ml and a rotary filling system with hopper size of 50–180 mm. Equipped with a vibration function to minimize product breakage during filling.
• Post-Processing System:
  1. Film sealing (10–30 bottles/min)
  2. Capping (10–30 bottles/min)
  3. Single-side labeling (10–30 bottles/min)
  4. Metal detection system (Fe ≥ 0.6 mm, Non-Fe ≥ 1.0 mm, SUS304 ≥ 1.2 mm) to ensure product safety and regulatory compliance
• Food-Grade Design: Combines solid filling (popping boba) and liquid filling (syrup), with a liquid filling capacity of 500–1500 ml and a rotary filling system with hopper size of 50–180 mm. Equipped with a vibration function to minimize product breakage during filling.
• Flexible Configuration: Features adjustable speed, customizable bottle types, and seamless integration with existing production lines.

We provide a wide range of packaging solutions to meet different production scale and packaging format requirements:
