Automatic Gummy Candy Weighing Packaging Line
Inquiry

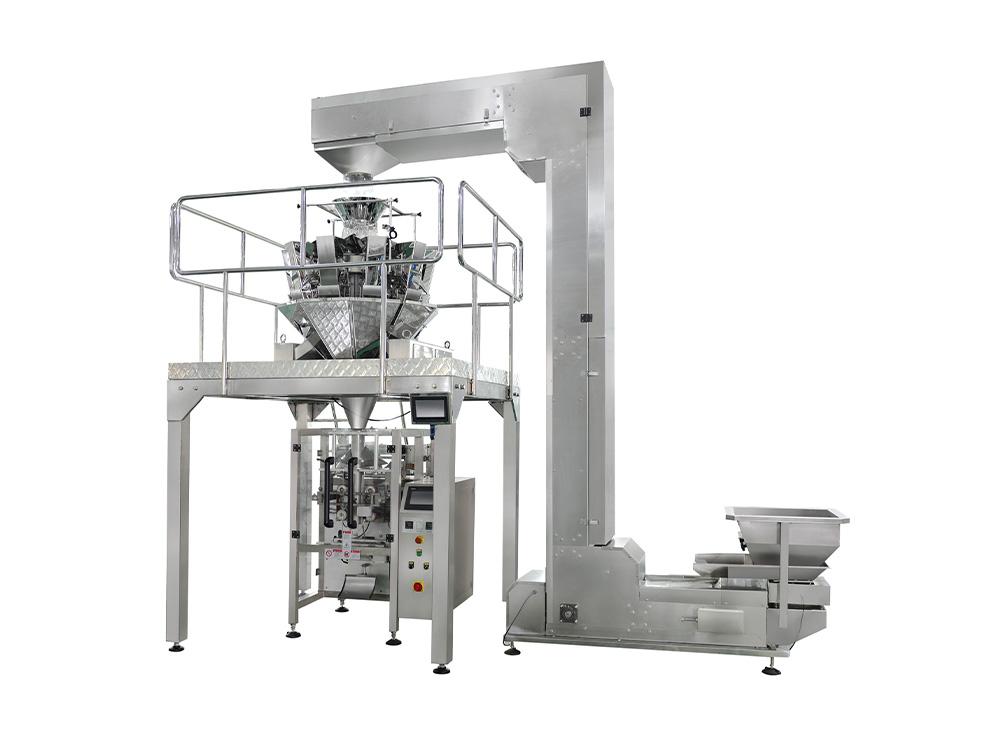

Automatic Gummy Candy Weighing Packaging Line

This automatic gummy weighing packaging line is designed for solid or piece-type confectionery such as gummy candies. It integrates automatic feeding, precise weighing, and high-speed packaging into a compact system measuring approximately 4.5 m × 3.5 m, fully compliant with CE food-grade standards.

The candy packaging line consists of a bucket elevator, working platform, multihead weigher, vertical form fill seal (VFFS) packaging machine, and finished product conveyor. The production line enables fully automated weighing, bag forming, filling, sealing, and conveying, offering high accuracy, high efficiency, and intelligent control. It is ideal for medium- to large-scale continuous production.

Samples of Packaged Gummy Candy
  • Samples of Packaged Gummy Candy
  • Samples of Packaged Gummy Candy
  • Samples of Packaged Gummy Candy
Packaging Flow Chart
Finished Gummies
Bucket Elevator
Working Platform
Multihead Weigher
VFFS Packaging Machine
Finished Product Conveyor
Cartoning/Inspection
Parameters
Model PM620-T PM520-T
Bag Length 150-400 mm 100-350 mm
Bag Width (Front) 80-250 mm 50-200 mm
Bag Width (Side) 40-150 mm 35-100 mm
Sealing Width 5-10 mm 5-10 mm
Max. Film Width 620 mm 520 mm
Packaging Speed 15-45 pcs/min 15-50 pcs/min
Air Consumption 0.68 m3/min 0.60 m3/min
Air Pressure 0.65 MPa 0.65 MPa
Power 8 kW 7.5 kW
Machine Weight 880 kg 750 kg
Film Material Laminated film (OPP/CPP, OPP/PE, PET/PE, aluminum film)

Key Components
  • Bucket Elevator

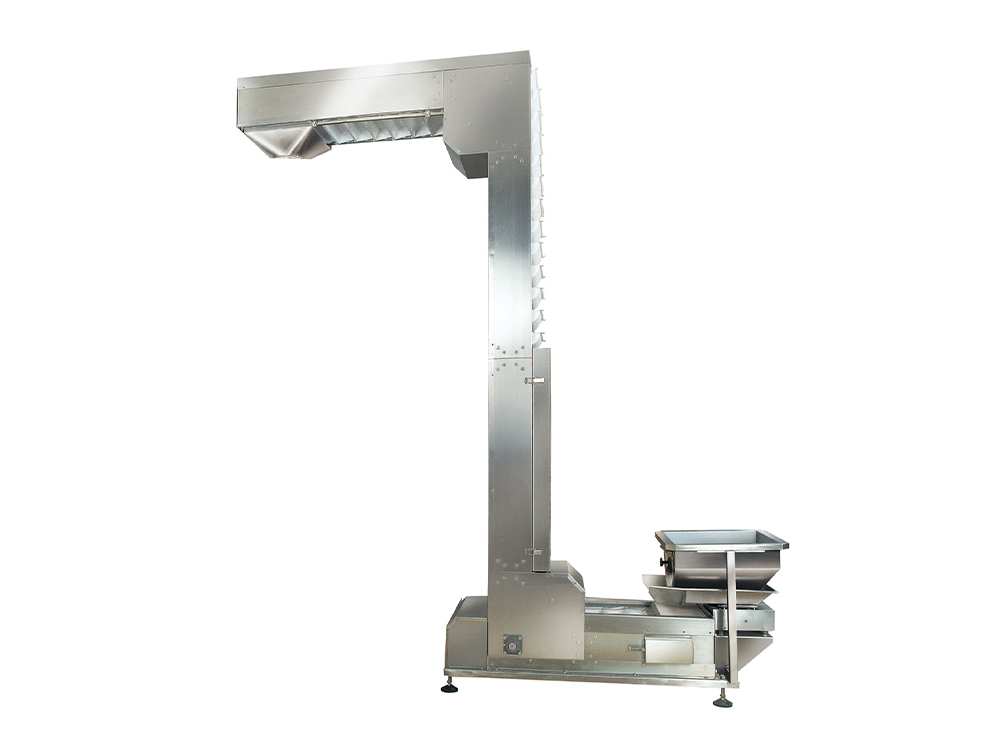

    Bucket Elevator

    The food-grade conveying structure ensures smooth and continuous feeding of gummy products into the weighing system, reducing product compression, sticking, and deformation, maintaining product integrity and appearance quality.

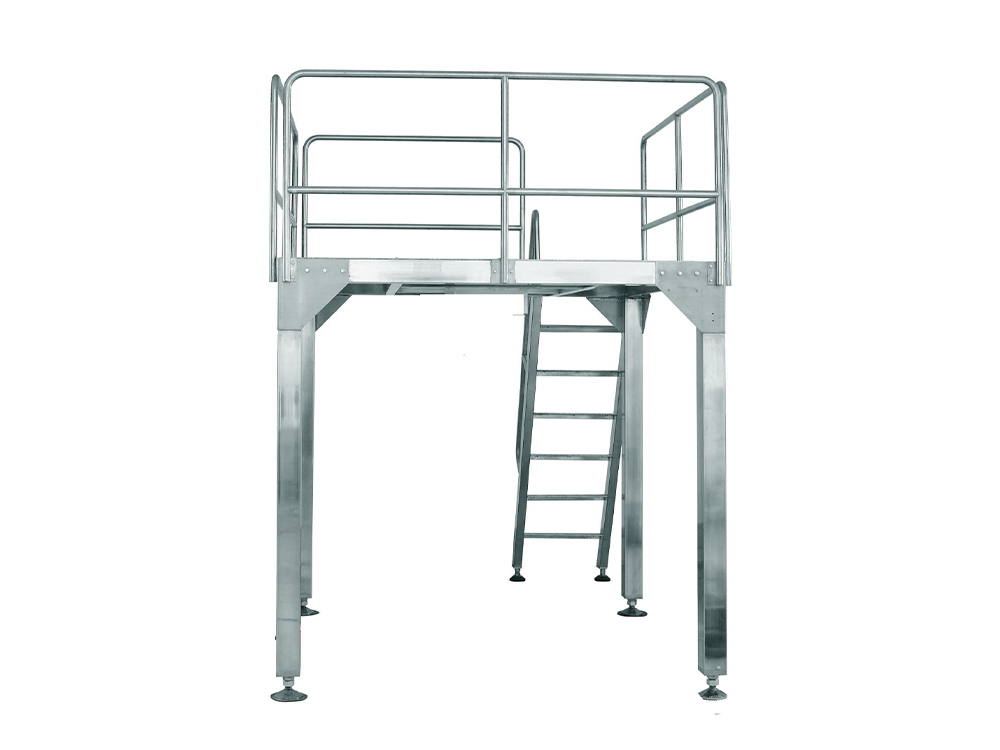

  • Working Platform

    Working Platform

    Made of food-grade stainless steel, the platform supports the installation and operation of the multihead weigher and facilitates manual feeding and operation.

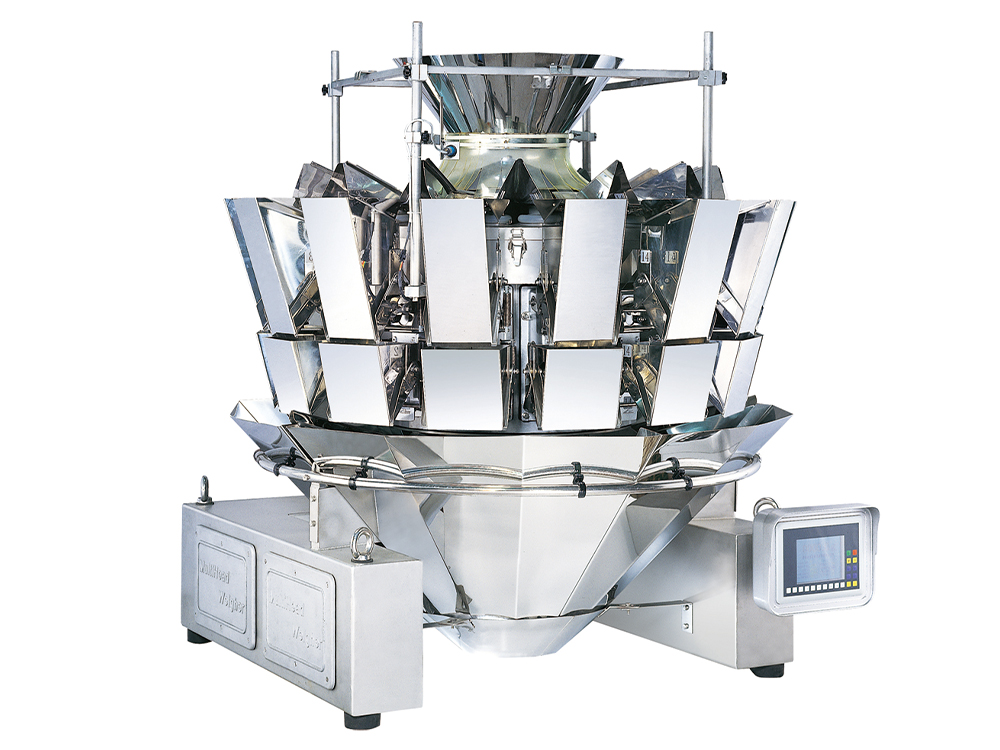

  • Multihead Weigher

    Multihead Weigher

    Equipped with high-precision load cells and intelligent combination algorithms, the multihead weigher enables fast and accurate quantitative weighing, improving weighing accuracy and production efficiency while meeting various packaging requirements.

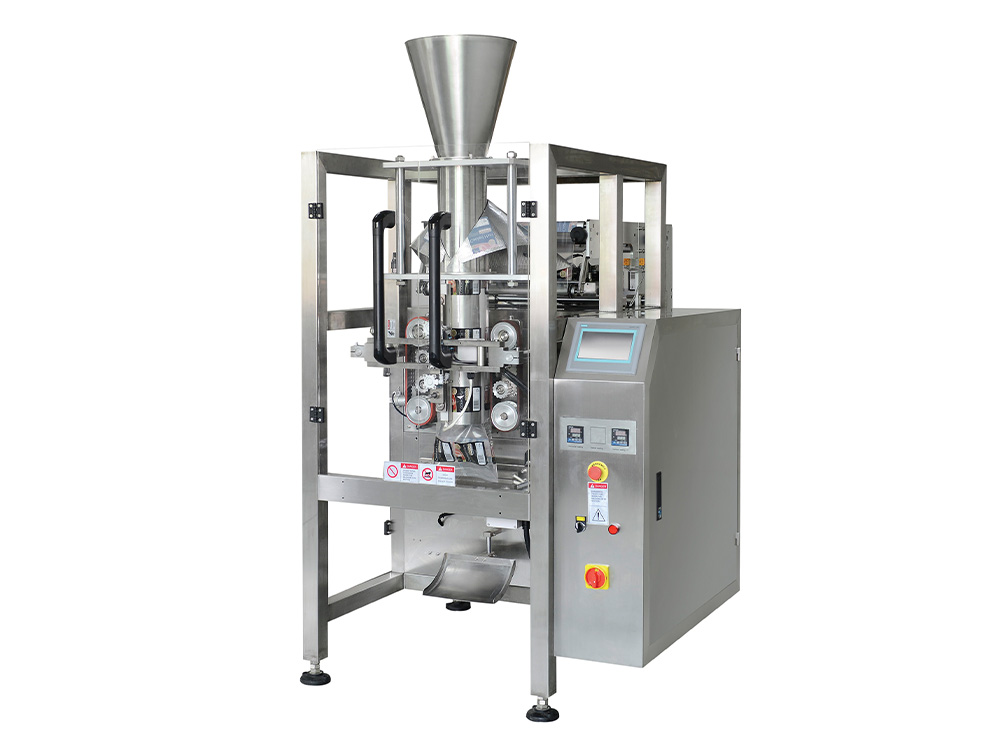

  • VFFS Packaging Machine

    VFFS Packaging Machine

    Automatically completes bag forming, metered filling, sealing, and cutting. Compatible with various bag types such as pillow bags and back-seal bags, ensuring firm and consistent sealing quality and meeting diverse packaging requirements.
Inquiry
Related Products

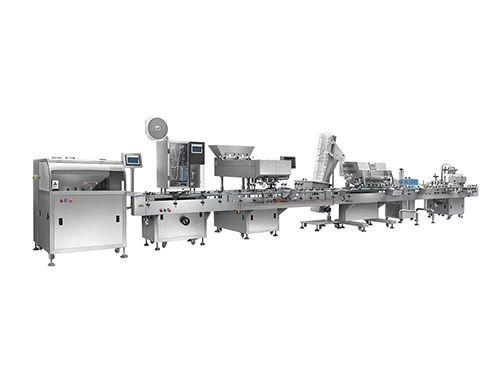

  • Automatic Gummy Candy Counting Packaging Line
