Automatic Gummy Candy Counting Packaging Line
Inquiry

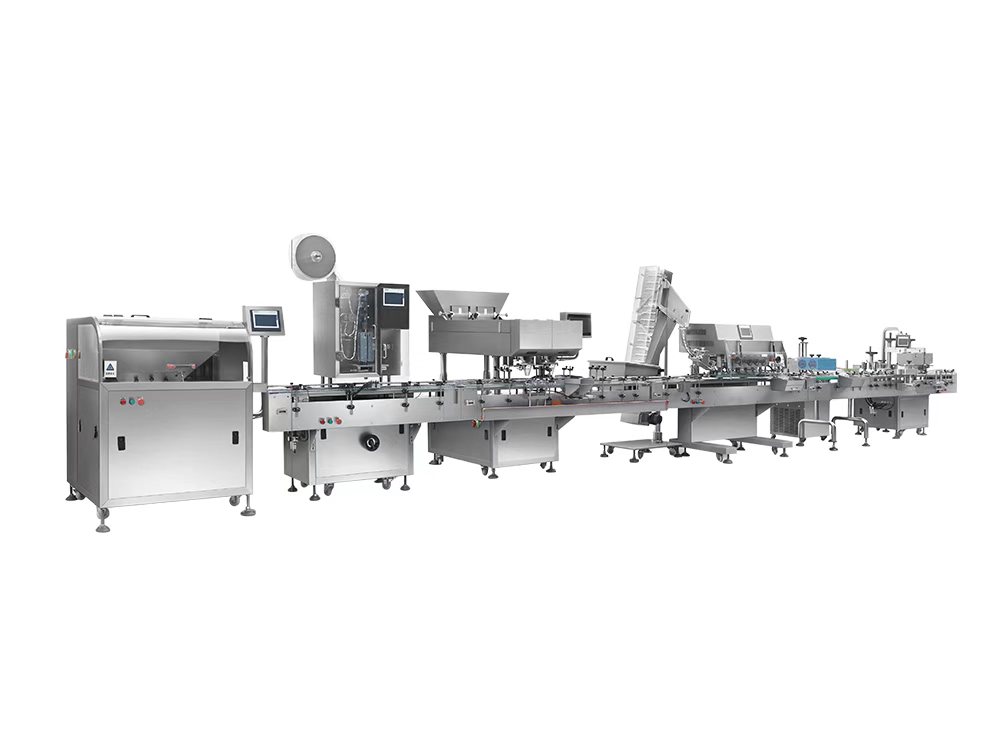

Automatic Gummy Candy Counting Packaging Line

The automatic gummy candy counting packaging line is designed for bottled gummy products, covering an area of approximately 9m×3m. It provides a compact and efficient solution that automates the entire process from bottle unscrambling, counting, filling, sealing, and labeling.

The candy packaging system includes a bottle unscrambler, bucket elevator, electronic counting machine (candy counting system), cap feeder, capping machine, induction sealing machine, labeling machine, and finished product collection table. All equipment is seamlessly integrated to ensure stable, continuous production with high accuracy and intelligent control, making it suitable for medium- to large-scale operations.

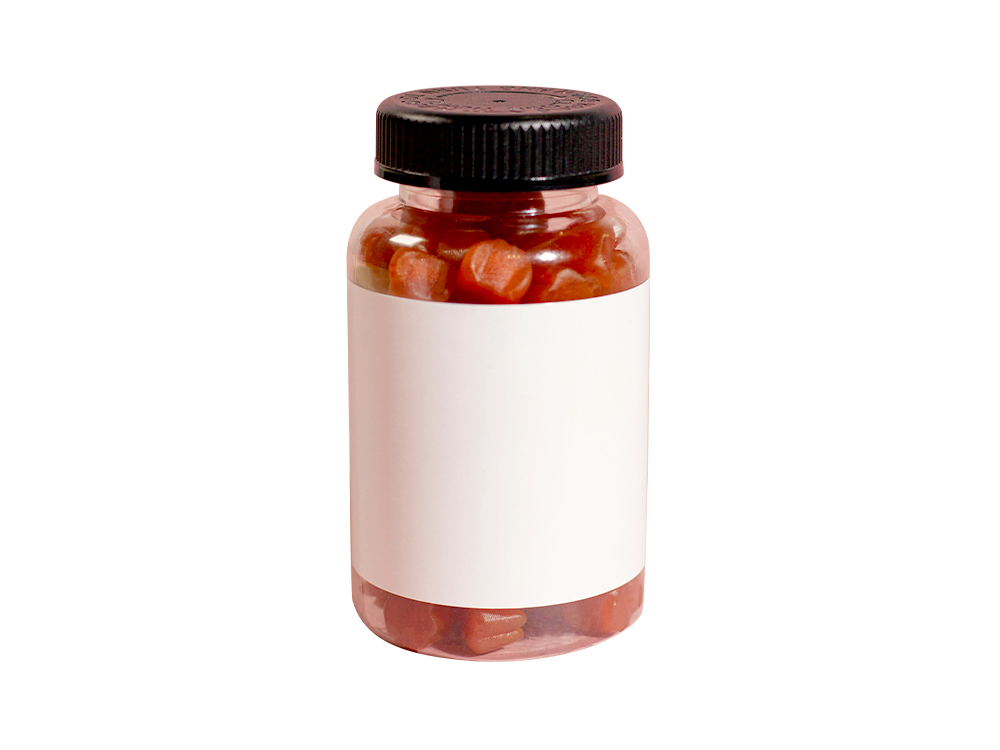

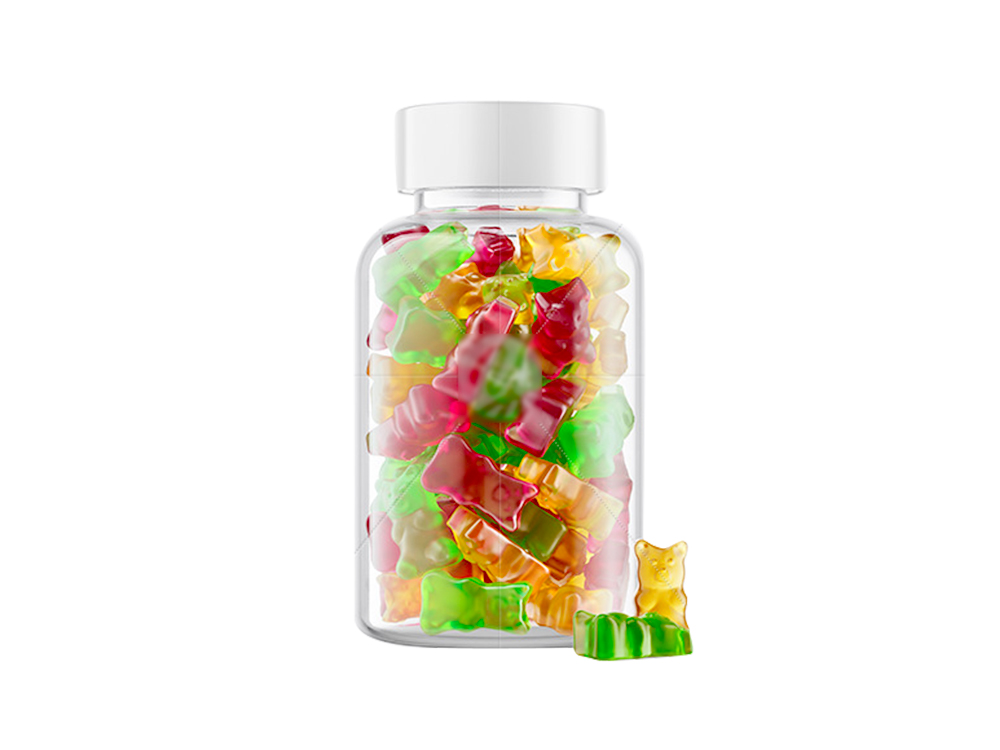

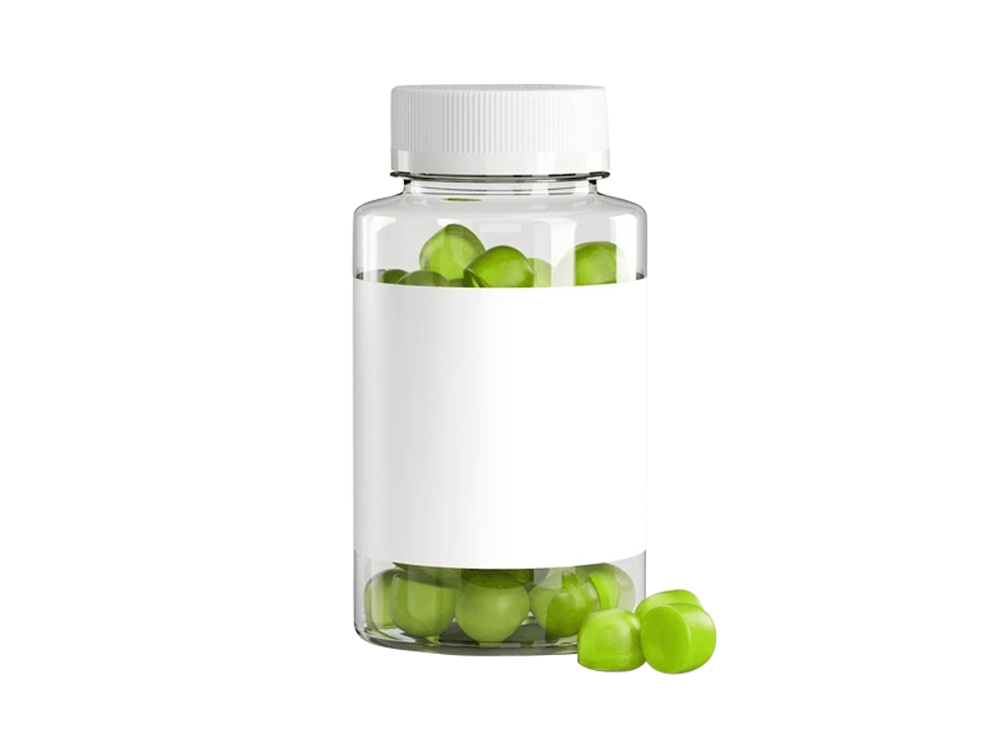

Samples of Packaged Gummy Candy
  • Samples of Packaged Gummy Candy
  • Samples of Packaged Gummy Candy
  • Samples of Packaged Gummy Candy
Packaging Flow Chart
Finished Gummies
Bottle Caps
Bucket Elevator
Cap Elevator
Empty Bottle
Bottle Unscrambler
Electronic Counting Machine
Capping Machine (3 Wheel)
Induction Sealing Machine
Labelling Machine
Cartoning/Inspection
Parameters
Model Speed Power Size Hopper Capacity
8-channel 10–40 bottles/min 0.6 kW 1360×1530×1700 mm 16 L
12-channel 10–50 bottles/min 0.7 kW 1360×1530×1700 mm 24 L
16-channel 10–70 bottles/min 0.9 kW 1560×1530×1700 mm 50 L
24-channel 10–80 bottles/min 1 kW 1560×1530×1700 mm 57 L
32-channel 10–100 bottles/min 1.3 kW 2160×1530×1700 mm 80 L
48-channel 10–120 bottles/min 1.6 kW 2160×1560×1700 mm 100 L

Key Components

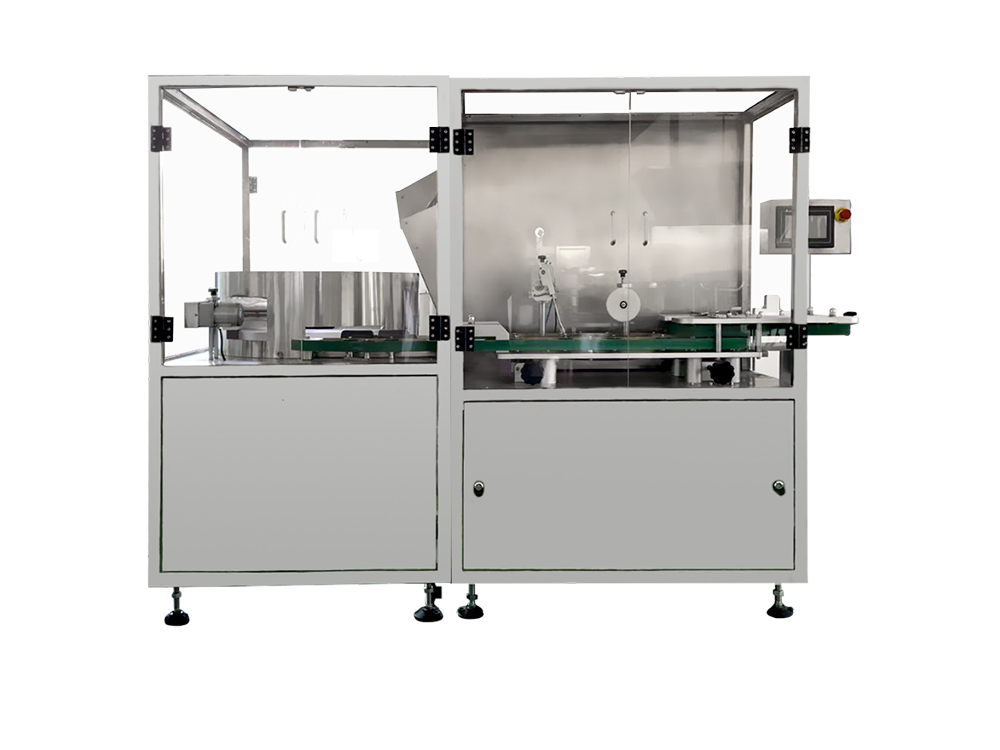

  • Automatic Bottle Unscrambler

    Automatic Bottle Unscrambler

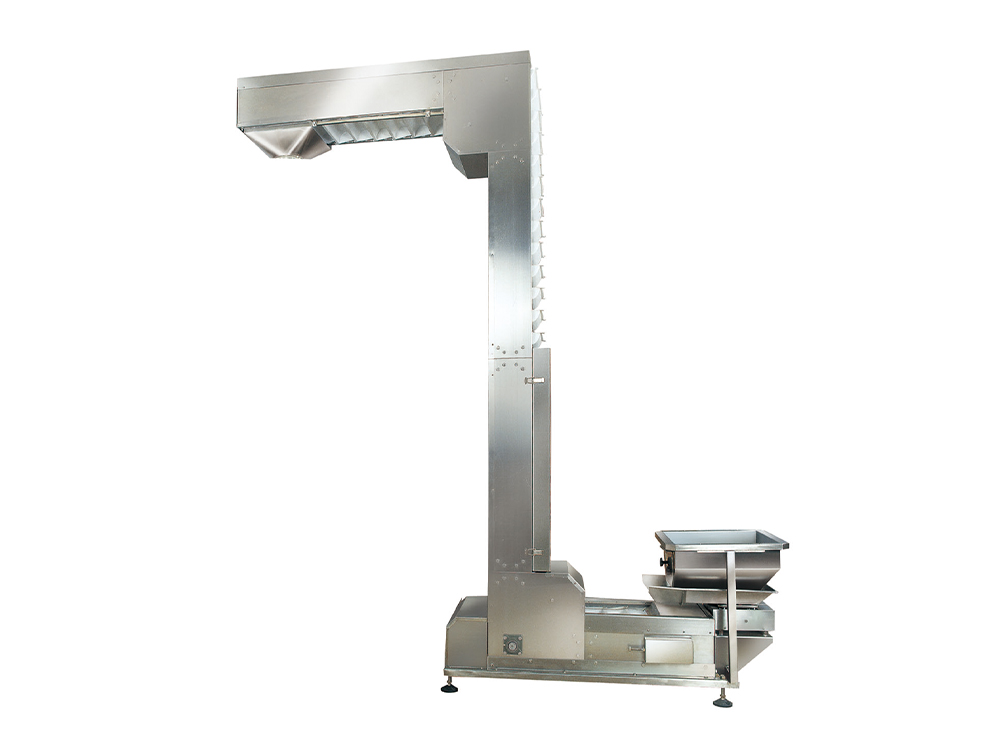

  • Bucket Elevato

    Bucket Elevato

    Ensures stable and continuous feeding of gummy products into the counting system while minimizing compression and product damage.

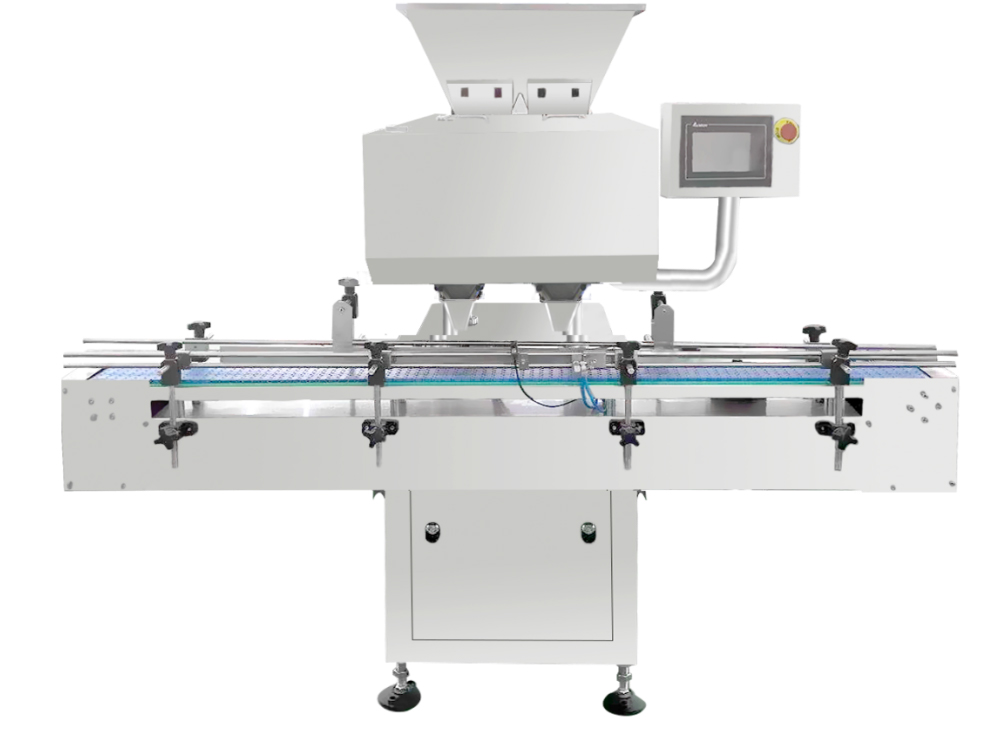

  • Electronic Counting Machine (16-channel example)

    Electronic Counting Machine (16-channel example)

    Gummy products are evenly distributed into channels, where photoelectric sensors accurately count and dispense products into bottles in preset quantities.

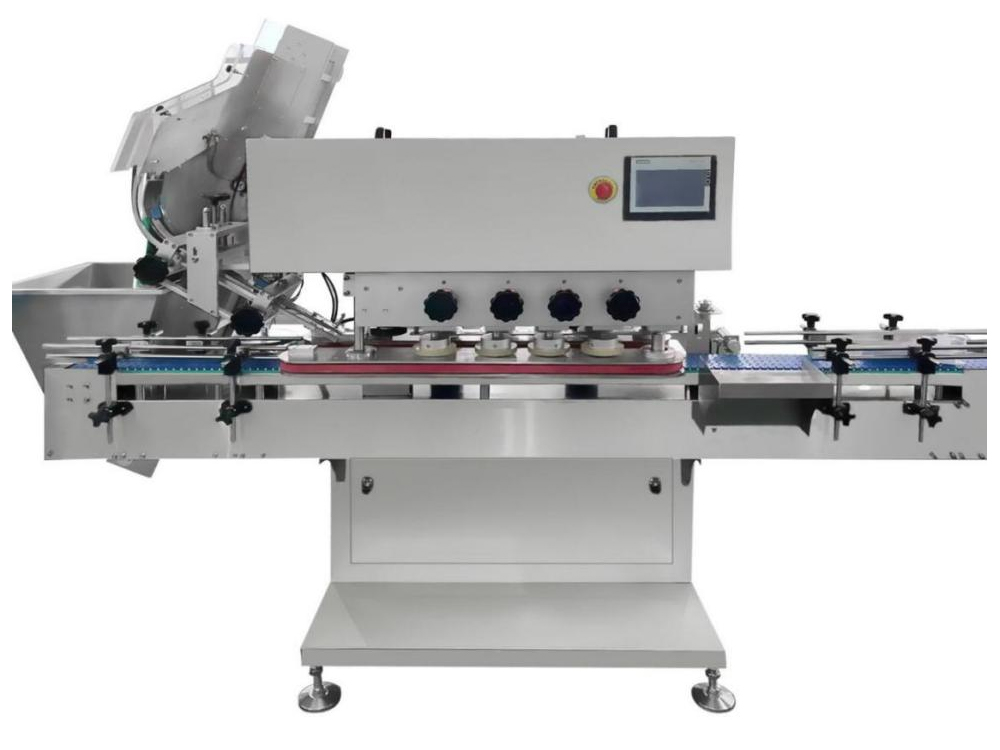

  • Cap Feeding & Capping Machine (3 sets capping roller)

    Cap Feeding & Capping Machine (3 sets capping roller)

    The rotary capping system performs automatic bottle feeding, cap sorting, cap feeding, cap placement, cap pressing, torque-controlled capping, and automatic bottle discharge.

    The transmission system is enclosed within the machine housing to prevent product contamination caused by mechanical wear. All product-contact parts are finished with high-precision polishing to meet hygiene standards. The machine is equipped with safety features such as an automatic stop when no cap or bottle is detected, and automatic operation when both are in place.

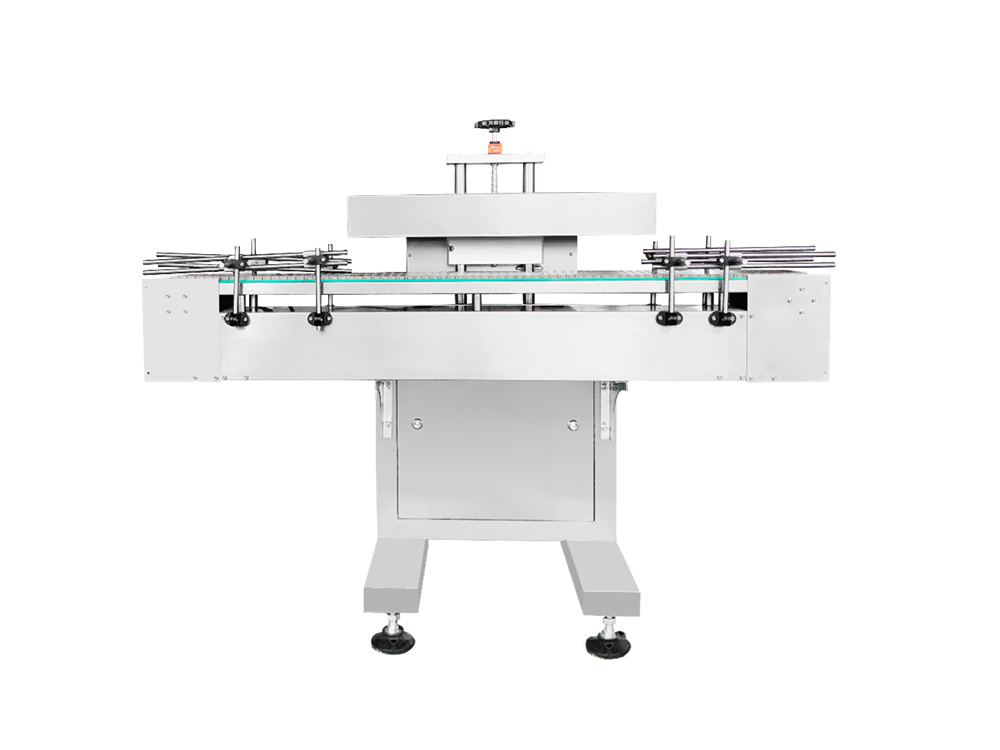

  • Induction Sealing Machine

    Induction Sealing Machine

    Uses electromagnetic induction heating to seal aluminum foil liners onto bottle openings, ensuring secure and airtight sealing.

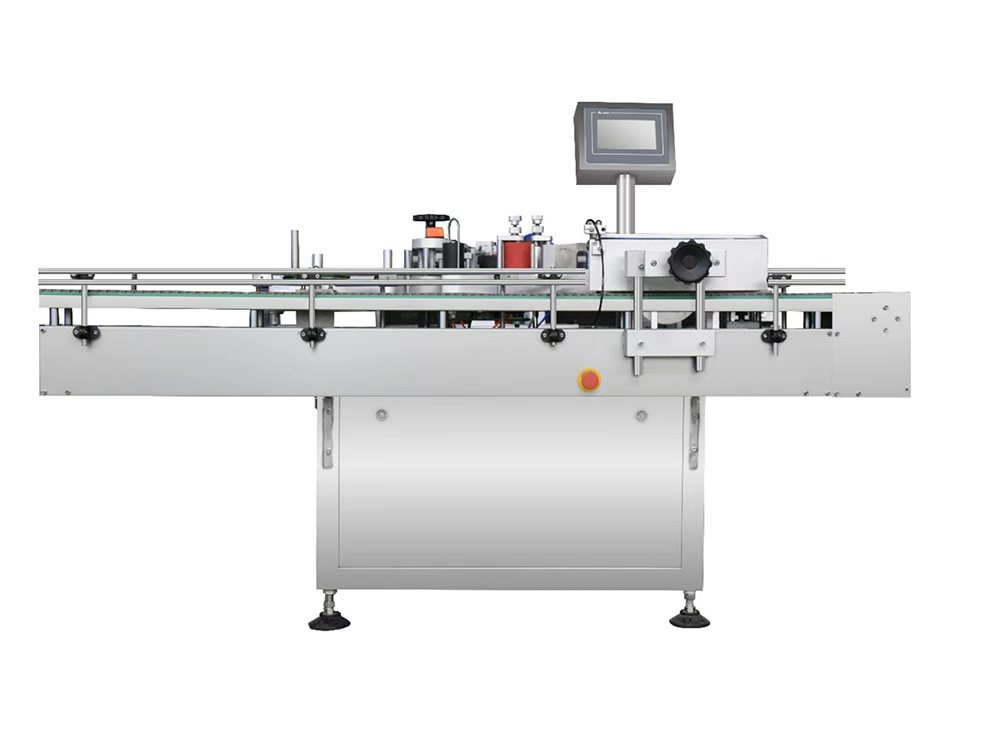

  • Labeling Machine

    Labeling Machine
